Automatic Woodworking Corner Rounding Edge Banding Machine with 0.4-3mm Edge Thickness

Name: Automatic Woodworking Corner Rounding Edge Banding Machine with 043mm Edge Thickness
Brand: Rensolin
Price: 7 USD

Buy cheap Automatic Woodworking Corner Rounding Edge Banding Machine with 0.4-3mm Edge Thickness product

Place of Origin : China

Brand Name : Rensolin

Packaging Details : Wrapped film or wooden box

Supply Ability : 300Sets/Month

Price : $7,000.00/sets 1-4 sets

Certification : CE,ISO

MOQ : 1Set

Delivery Time : 5-7days

Payment Terms : T/T

Voltage : 220/380/415v, 220/380/415v

Dimension(L*W*H) : 5000*750*1600mm

Power (kW) : 12.21kw

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Other

Warranty : 2 years

Key Selling Points : Automatic

Contact Now

Products picture

Automatic Woodworking Corner Rounding Edge Banding Machine with 0.4-3mm Edge Thickness

Specification

Name	Edge Banding Machine
Model	RSL550ADF
Panel thickness	10-60mm
Belt thickness	0.4-3mm
Min. width of panel	>=60mm
Min. width of panel	>=50mm
Belt thickness	15-65mm
Conveyor speed	15-23meters/min
Total power	12.21KW
Air pressure	0.8Mpa
Voltage	380V/220v/415v
Weight	2300KG
Overall dimensions	56007501600MM

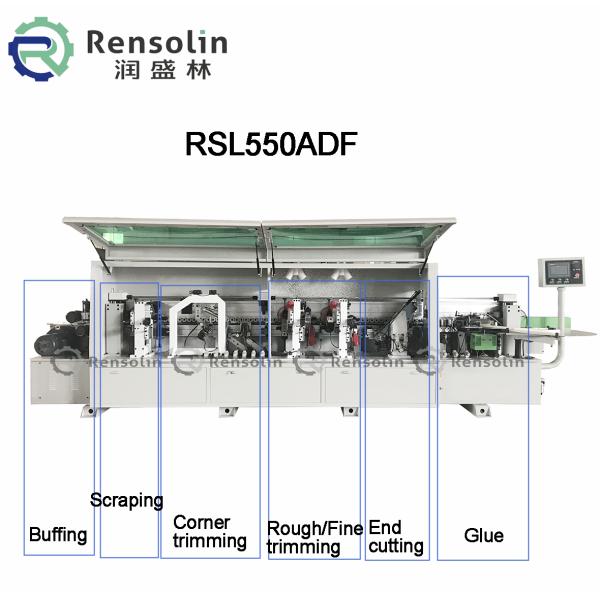

Products Display

High efficiency and stability

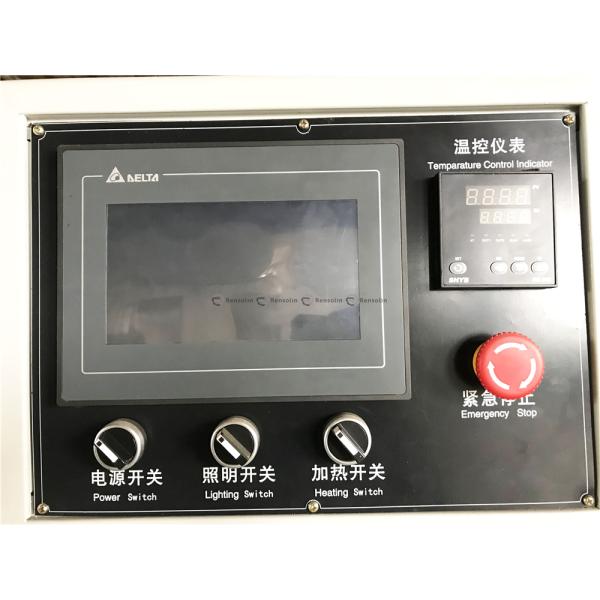

1.PLC microcomputer controlled three-speed regulating

preheating function.Low speed :13 m/min Medium speed :

18 m/min High speed :25 m/min Efficiency greatly improved at the same time, edge sealing effect is not affected by any, high-match models can achieve high stability.

Glue evenly bond firm

2.Gluing and pressing
Through the processing center of the one-time forming of the glue pot heating sol, using the spiral structure of glue feeding, so that the plate uniformly coated with glue, after the press wheel sealing strip and plate pressed, so that the adhesive force is more firm..

German high matching technology cutting surface smooth

3.End cutting
Adopt high matching German technology, through precise direct selling guide rail movement, adopt automatic tracking by mold and high frequency high click quick cutting structure, ensure smooth cutting surface, quick and light cutting drive

Reduce the cutting force and wear of the finishing tool

4.Rough Trimming
It is recommended to use the rough repair function when sealing the edge belt with a thickness of more than 1.5mm. If sealing PVC,acrylic and wood veneer, it must be roughened to reduce the cutting force and wear of the finishing tool

Not seal edge strip surface dark mark

5.Fine Trimming
Fine repair is divided into two kinds of flat repair and oblique repair, oblique repair in the sealing surface of high brightness edge strip (such as acrylic edge strip), will not seal edge strip surface dark mark, and the use of flat repair process, the surface will produce dark mark.

The end face of plate more smooth

6. Round Corner

Adopt high speed motor, can make the end face of plate more smooth.

The arc angle can be adjusted

7.Scraping
It is used to eliminate the ripple marks caused by the cutting process of non-linear motion of trimming, make the plate more smooth and neat, and adjust the size of arc Angle at the same time, make the sealing effect more delicate.

Cotton polishing wheel

8.Buffing
Use cotton polishing wheel to clean the finished plate, remove the excess glue, and make the sealing section more smooth by polishing

9.Customizing Plus Features

①Vertical Slotting Function
It can be used for grooving the back plate, and it is more convenient to finish the edge sealing and grooving at one time.
②Horizontal slotting function
Can be used for wardrobe side board, floor and other direct slotting, can also be used for door aluminum edge slotting, reducecutting board saw or end milling machine process.
③ Pre-milling
Double milling cutter is used to modify the ripple marks caused by cutting board saw, and the burr is modified again to achieve better sealing effect.
